Product Introduction

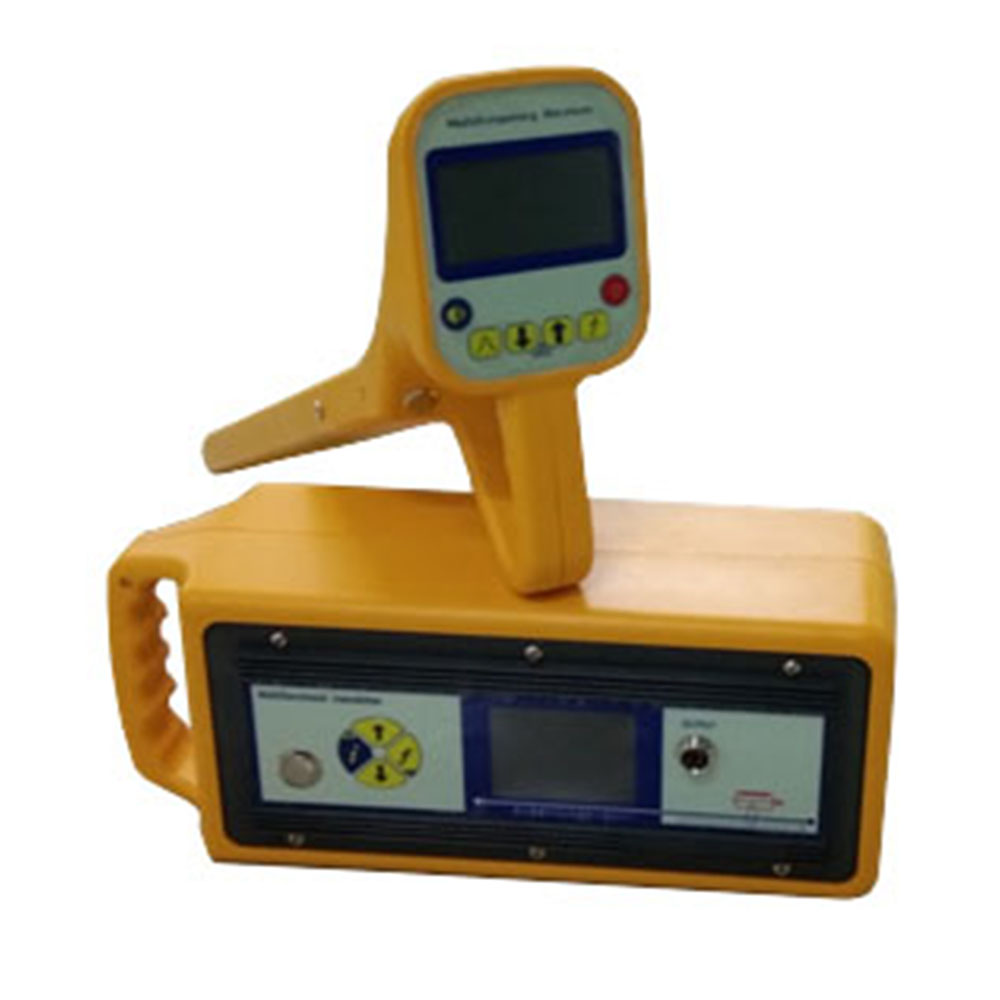

Wuhan UHV Power Technology Co.,Ltd., is a professional manufacturer and supplier of high-voltage power testing equipment in China.The UHV-515 Underground Pipeline Detector is an advanced, multi-frequency detection system widely used for locating underground cables, optical fibers and metal pipelines (6m+ depth) across power, telecom, utilities and oil/gas industries. Combining high-power transmission with intelligent signal processing, it delivers precise positioning through automated multi-frequency analysis, making professional-grade detection accessible to all users. Its reliable performance has made it the preferred solution for pipeline construction, inspection and maintenance throughout China's infrastructure sectors.
 |  |  |
제품 특징
Display & Power
1、Large Chinese LCD graphic display for clear visualization
2、12W high-power output extends detection range and depth
3、Rechargeable battery operation (optional dry batteries) for field portability
Detection Technology
1、Multi-frequency selection for versatile applications
2、Professional narrowband filtering for superior anti-interference
3、Automatic impedance matching requires no manual adjustment
4、Multi-antenna system directly displays buried cable depth
Measurement Capabilities
1、Current measurement for target pipeline identification
2、Built-in ohmmeter for loop resistance testing
3、Multimeter functions (continuity and insulation testing)
4、Capable of locating 50Hz live cable paths
Performance Advantages
1、Optimized power management ensures extended operation
2、Cost-effective solution for long detection sessions
3、Specialized for deep buried and long-distance pipeline detection
제품 매개변수

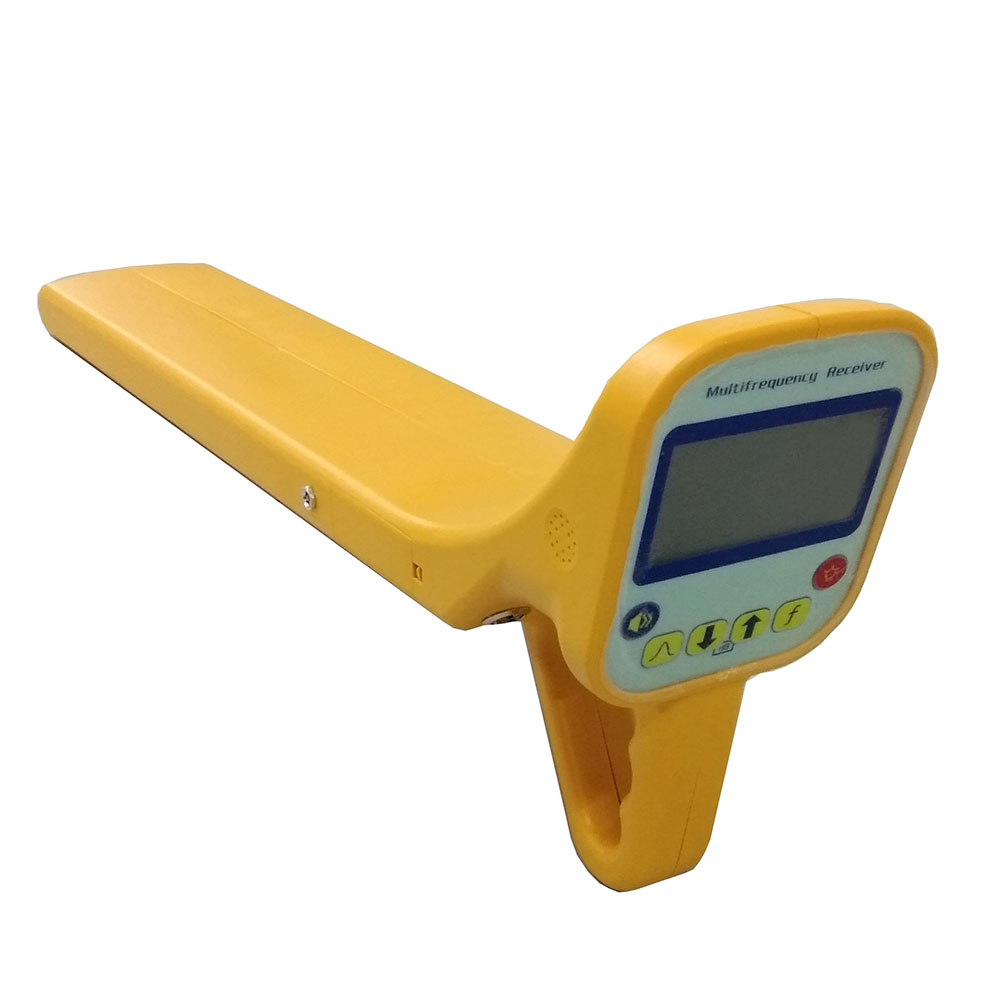

Receiver
| Active frequency | Receives 8 different frequencies, namely 50Hz, 577Hz, 815Hz, 8kHz, 33kHz, 65.5kHz, 82kHz, 133kHz |
| Depth range | 0～6M |
| Current range | Direct reading current, range 000~999mA |
| Receive mode | Wide peak mode, valley mode, external device mode |
| Detection accuracy | Detection accuracy: 0~3m is 5% of the buried depth; 3~6m is 10% of the buried depth |
| Signal strength indication | LCD display, sound prompt |
| Signal interface | The three interfaces of digital size, raster length and sound urgency indicate signal strength at the same time, and the dynamic range is 0~999, which can indicate the maximum signal strength |
| 동적 범위 확보 | Automatic adjustment and manual adjustment, dynamic range 0~100dB |
| Receive mode | Wide peak mode, valley mode, external device mode Digital signal and battery display, operating frequency, depth, volume, left/right direction display |
| LCD 디스플레이 | LCD display, graphic display, LCD screen backlight brightness can be manually switched on/off, using 240×128 dot matrix 3.6 inch black and white LCD screen, LCD screen backlight controllable |
| 배터리 | Lithium rechargeable battery, more than 12 hours |
| Overheating and overcurrent | Automatic protection |
| 작동 온도 | -20℃~70℃ |
| 용량 | 620×110 ×2300mm |
| 무게 | 1.6kg |

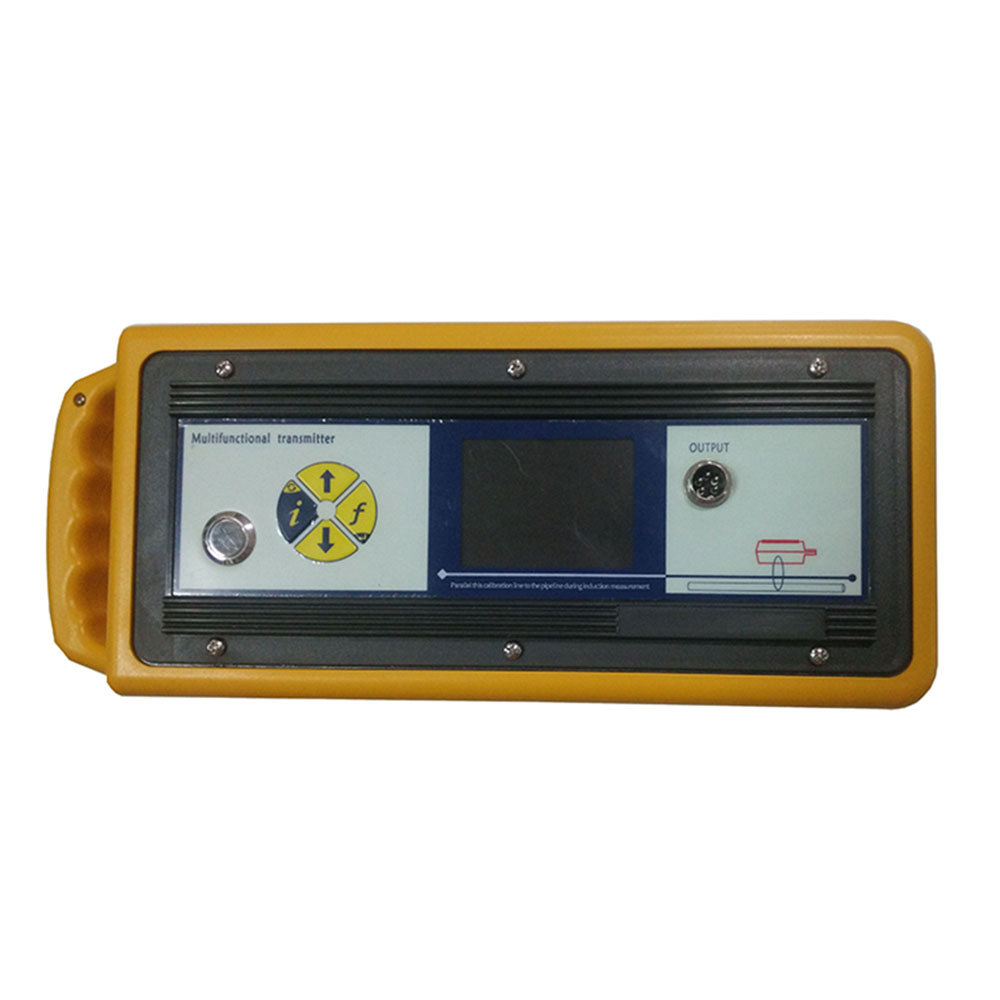

Launcher
| 출력 주파수 | 577Hz、815Hz、8kHz、33kHz、65.5kHz、82kHz、133kHz |
| Output mode | Induction mode, direct connection mode, clamp mode |
| Output power | 10W |
| 출력 전압 | 60V |
| Maximum output current | 1A |
| 전원공급장치 | Dual power supply, lithium battery pack (energy saving and environmental protection) |
| Overheating and overcurrent | Automatic protection |
| Battery status | Continuous display |
| Continuous working hours | 1W≥12 hours; 8 hours at 5W≥ 8 hours; ≥5 hours at 10W |
| 주변 온도 | -20℃-50℃ |
Application Scenarios
1. Power cable detection
Used in power construction, maintenance, and retrofitting projects to locate the position, route, and burial depth of underground cables. Particularly suitable for confirming cable routes before excavation, avoiding power outages or safety incidents caused by accidental digging.
2. Communication pipeline detection
Used for locating communication cables, detectable optical cables, and underground communication conduits, helping communication construction and maintenance personnel quickly identify underground line positions.
3. Water, gas, and heating pipeline detection
Used for locating underground metal water pipes, gas pipelines, and heating pipe networks in urban areas. Applicable to pipeline retrofitting, maintenance, and pre-construction pipeline surveys before road works.
4. Municipal engineering construction
Applicable to construction projects such as roads, subways, buildings, and industrial parks. Detect underground cables and pipelines before excavation, reducing construction risks caused by unknown underground utility locations.
5. Industrial and petrochemical plant areas
Used for underground pipeline surveys in industrial sites such as petrochemical plants, power plants, and other facilities, helping enterprises confirm underground facility locations before equipment retrofitting, pipeline maintenance, and foundation construction.
6. Pipeline maintenance and emergency repair
In the event of faults or repairs needed in power, communication, or water utilities, can quickly locate underground lines, providing on-site positioning support for emergency repairs and maintenance work.
FAQ about Intelligent Pipeline Detector
Q: What can this device mainly detect?
A: It is mainly used for locating underground cables, detectable optical cables, and metal pipelines. It can be applied in fields such as electric power, telecommunications, water utilities, gas, heating, and petrochemical industries.
Q: Will on-site electromagnetic interference affect the detection?
A: It may. The equipment uses multi-frequency detection and narrowband filtering technology to enhance anti-interference capability, but the actual detection performance may still be affected by surrounding power equipment, other lines, and underground environmental conditions.
Q: Can the device be used for construction safety management?
A: Yes. Conducting underground utility detection before construction can help identify potential cable and pipeline risks in advance, making it suitable for projects such as road excavation, building construction, and municipal retrofitting.
Q: Why choose our UHV-515 Underground Pipeline Locator?
A:We have our own factory with over 20 years of production experience.The UHV-515 is designed to meet actual project site requirements, balancing detection performance, operational convenience, and equipment reliability. Multi-frequency detection and multiple signal coupling methods enable adaptation to various site conditions, helping users quickly locate underground targets and obtain depth information. With professional technical support and comprehensive after-sales service, we are committed to providing customers with stable and efficient underground pipeline detection solutions.
Warranty
1 year, provide free repairment or replacement service (customer take the shipment cost), lifelong maintenance with reasonable charge.
Basic configuration
Launcher, receivers, rechargeable batteries, chargers, brazing.
