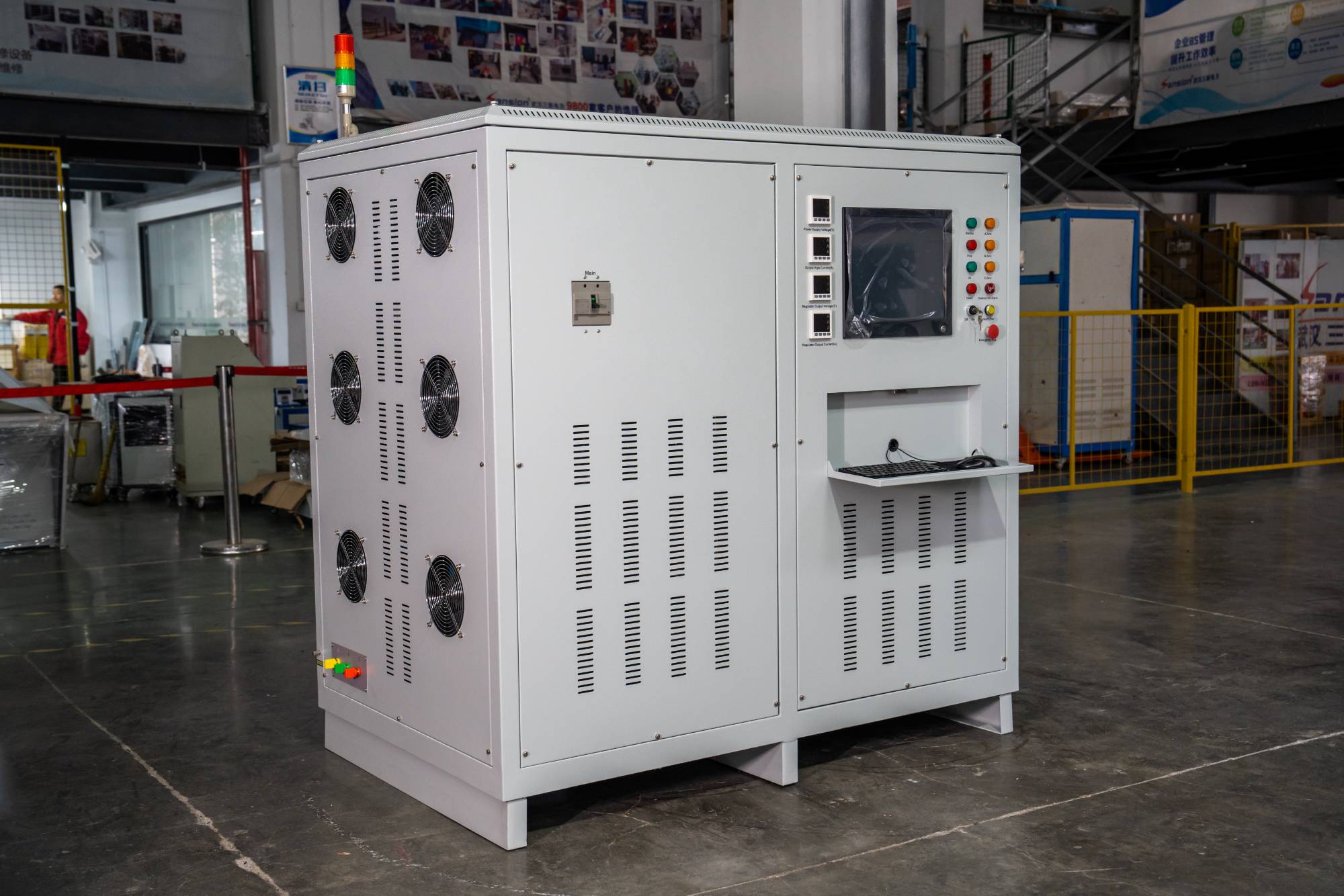

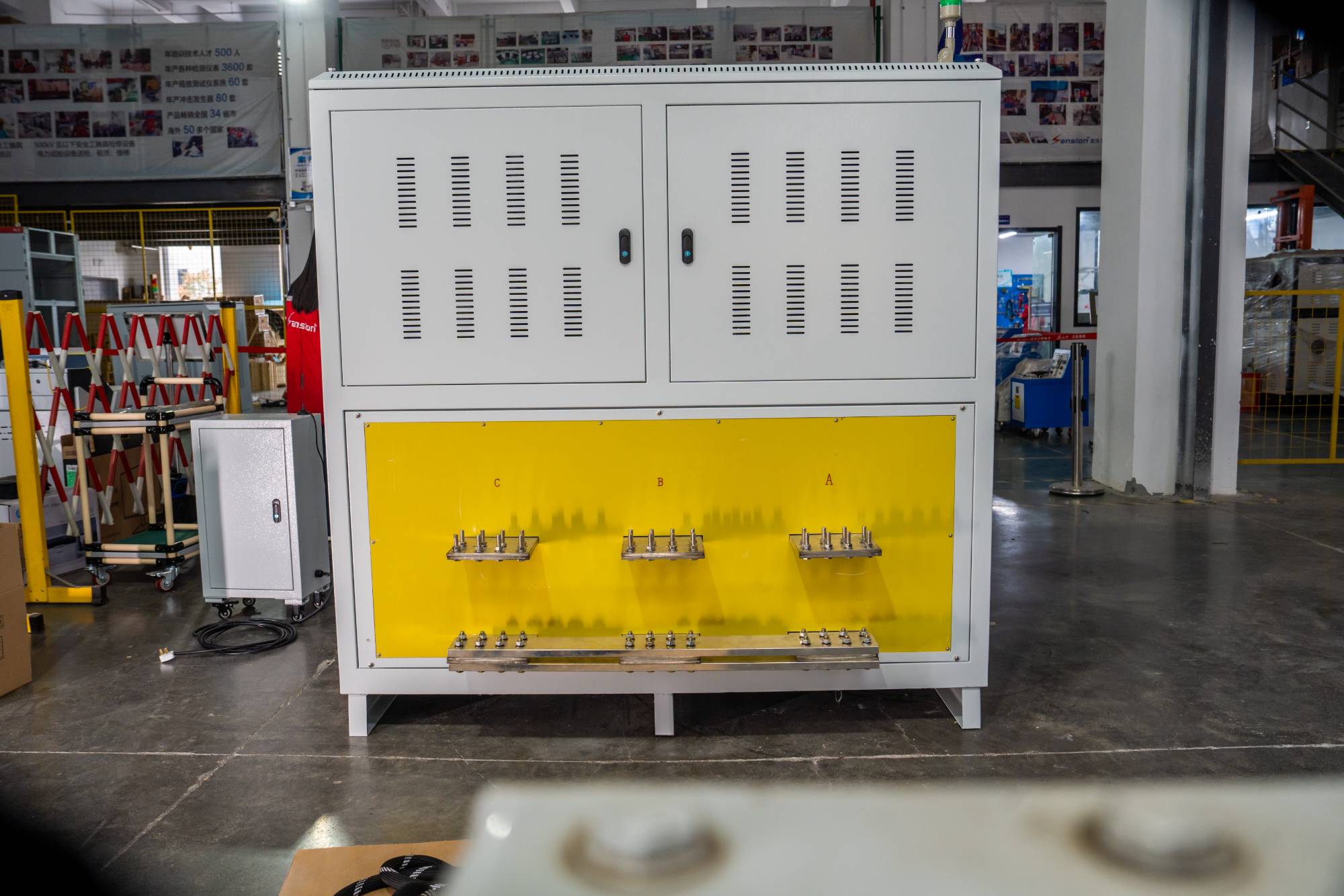

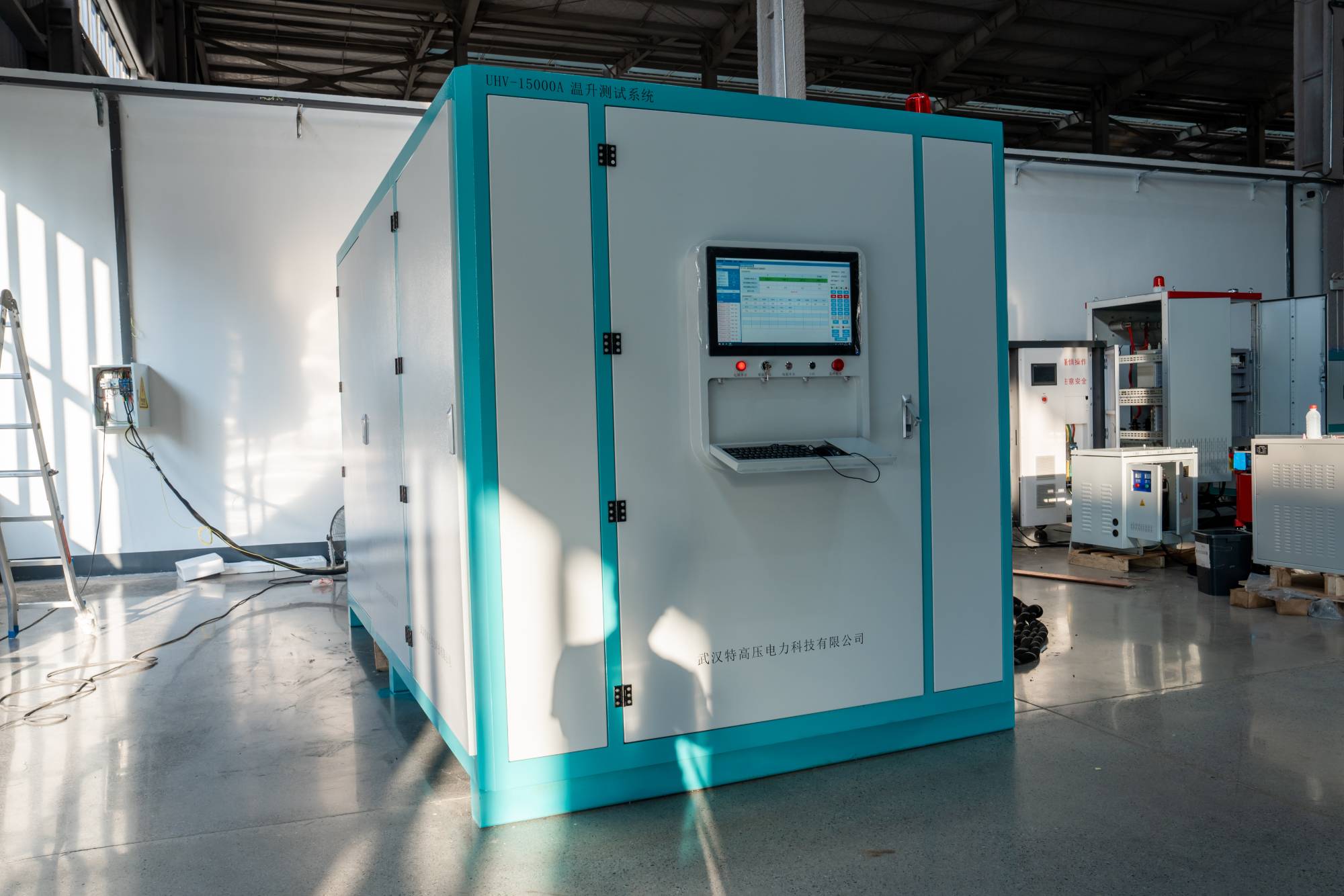

Product Introduction
It is a necessary equipment in various industries that requires high current places for electrical debugging. It is also a universal equipment for temperature rise testing of high-voltage switches, which is used in power plants, substations, electrical manufacturers, scientific research, laboratories and other units. It belongs to short-term or intermittent working system, and has the characteristics of small volume, light weight, good performance, and easy use and maintenance.
제품 특징
1. After setting the current, any deviation can be automatically adjusted separately
2. Electric control of voltage rise and fall to achieve control of output current, with optional control accuracy
3. Equipped with zero start protection function
4. The power supply and output current are displayed using computer software with an accuracy of 0.5 level
5. The experiment time is set independently and has a reminder function
 |  |  |
제품 매개변수
기술적인 매개변수
Input Voltage | Three-phase four-wire AC380V |
Rated Frequency | 50Hz |
Total System Power | 189kW |
Total System Current | 287A |
System Power Factor | cos²=0.8 |
Oil-Immersed Induction Voltage Regulator
정격 용량 | 63kVA |
Output Voltage | 0-430V |
출력 전류 | 0-166A |
Waveform Distortion | ≤3% |
Starting Voltage | ≤1% |
Short-Circuit Impedance | ≤7% |

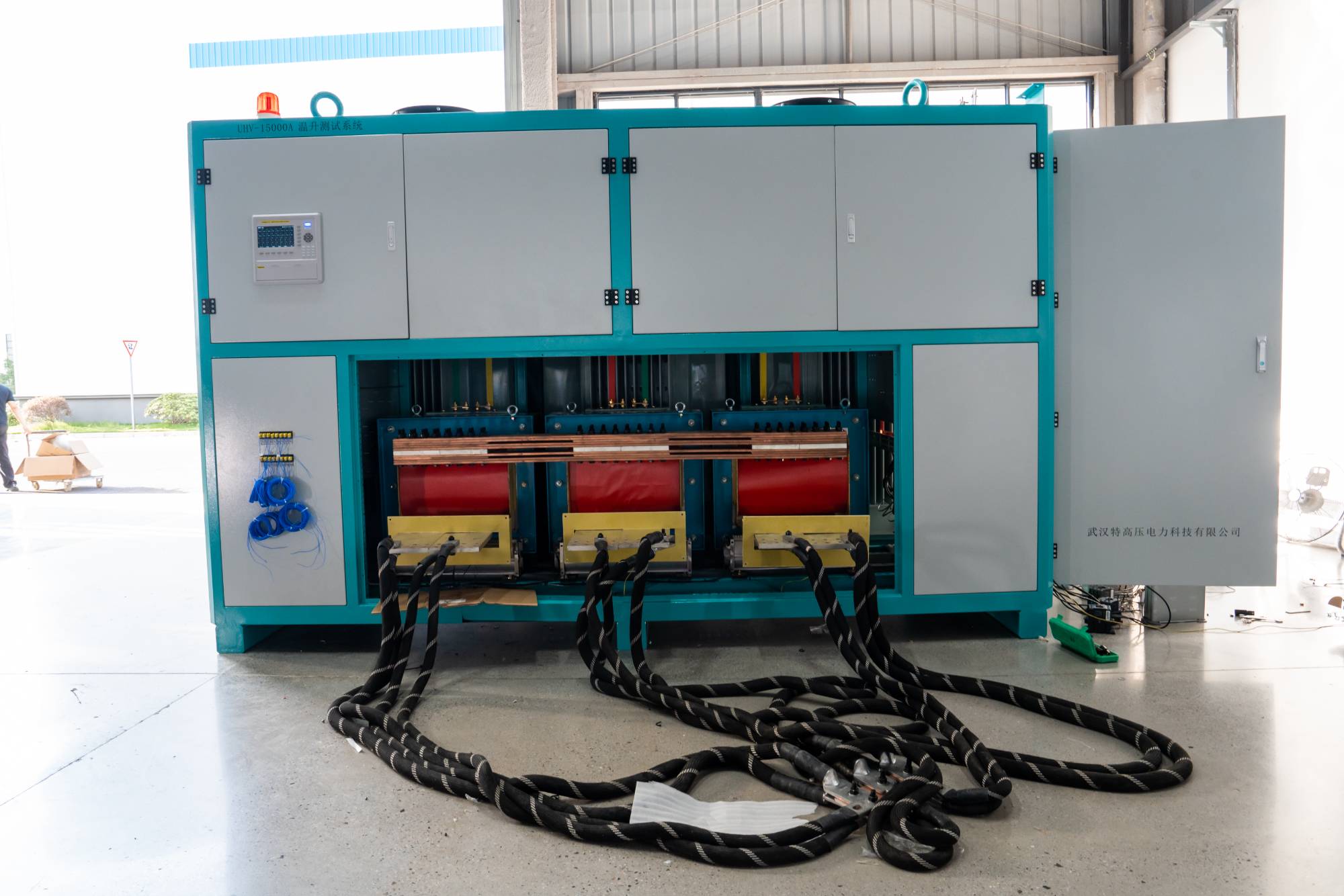

Dry-Type Current Booster
정격 용량 | 63kVA |
Output Line Voltage | 10V |
출력 전류 | 0-6300A |
Rated Input Voltage | 380V |
No-Load Loss | <4% |
Rated Input Current | 166A |
Short-Circuit Impedance | ≤5% |
Cooling Method | Dry-type, air-cooled |
 |  |  |
Equipment functions and practical features
1. Continuous and stepless adjustment of current, both small current terminals and large-sized busbars can be tested using the same equipment;

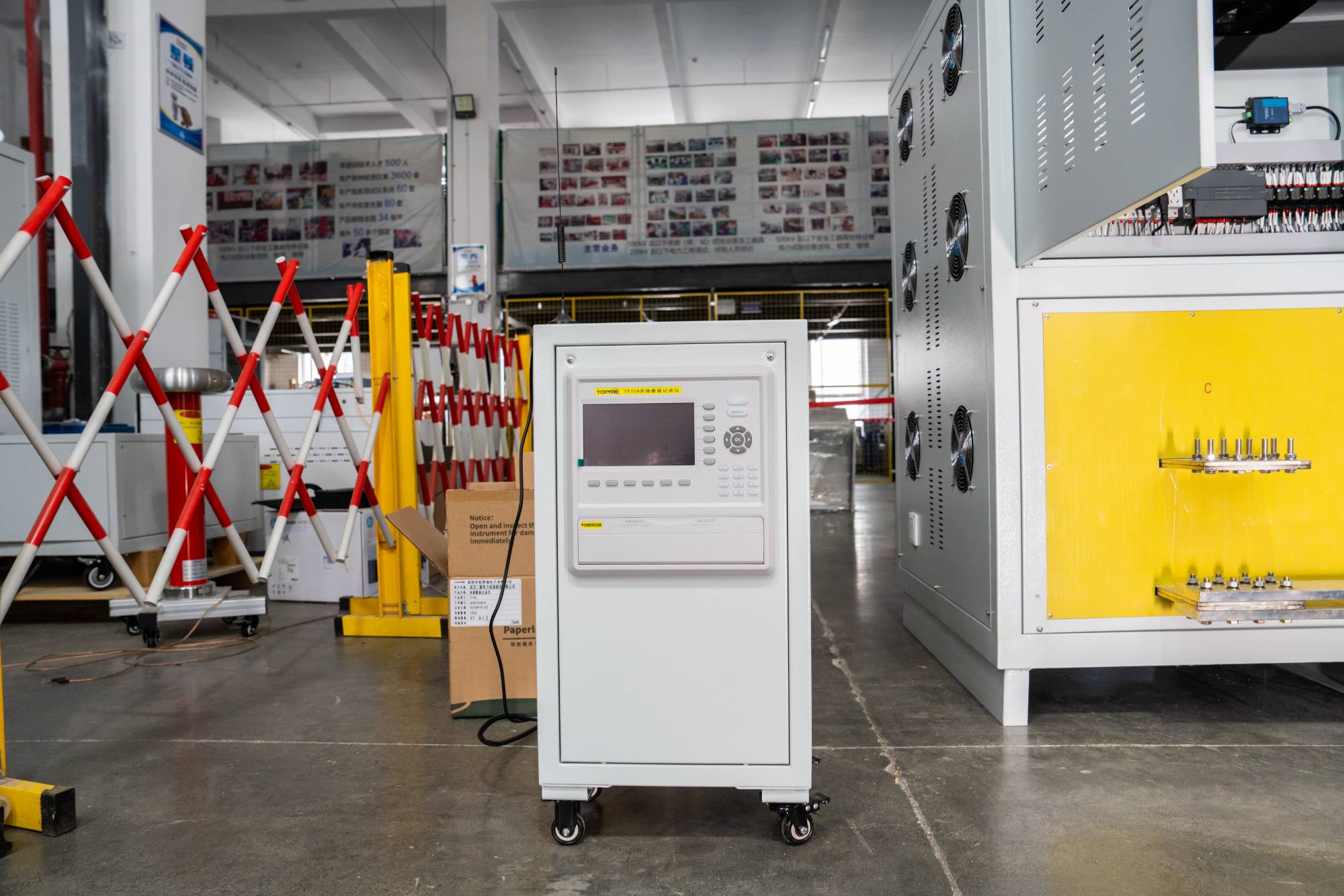

2. Multi channel thermocouples synchronously collect temperature data and monitor the temperature rise curve of the test sample in real-time at multiple points;
3. Preset the duration of the national standard temperature rise test, and automatically reduce the current and stop the machine when the set time is reached, without the need for manual supervision;
4. The current rise process is smooth without any impact current, avoiding instantaneous high current damage to the conductive contact surface of the test sample;
5. Air cooled cooling structure, with controllable body temperature for long-term full load testing, suitable for batch continuous testing.
Application Scenarios

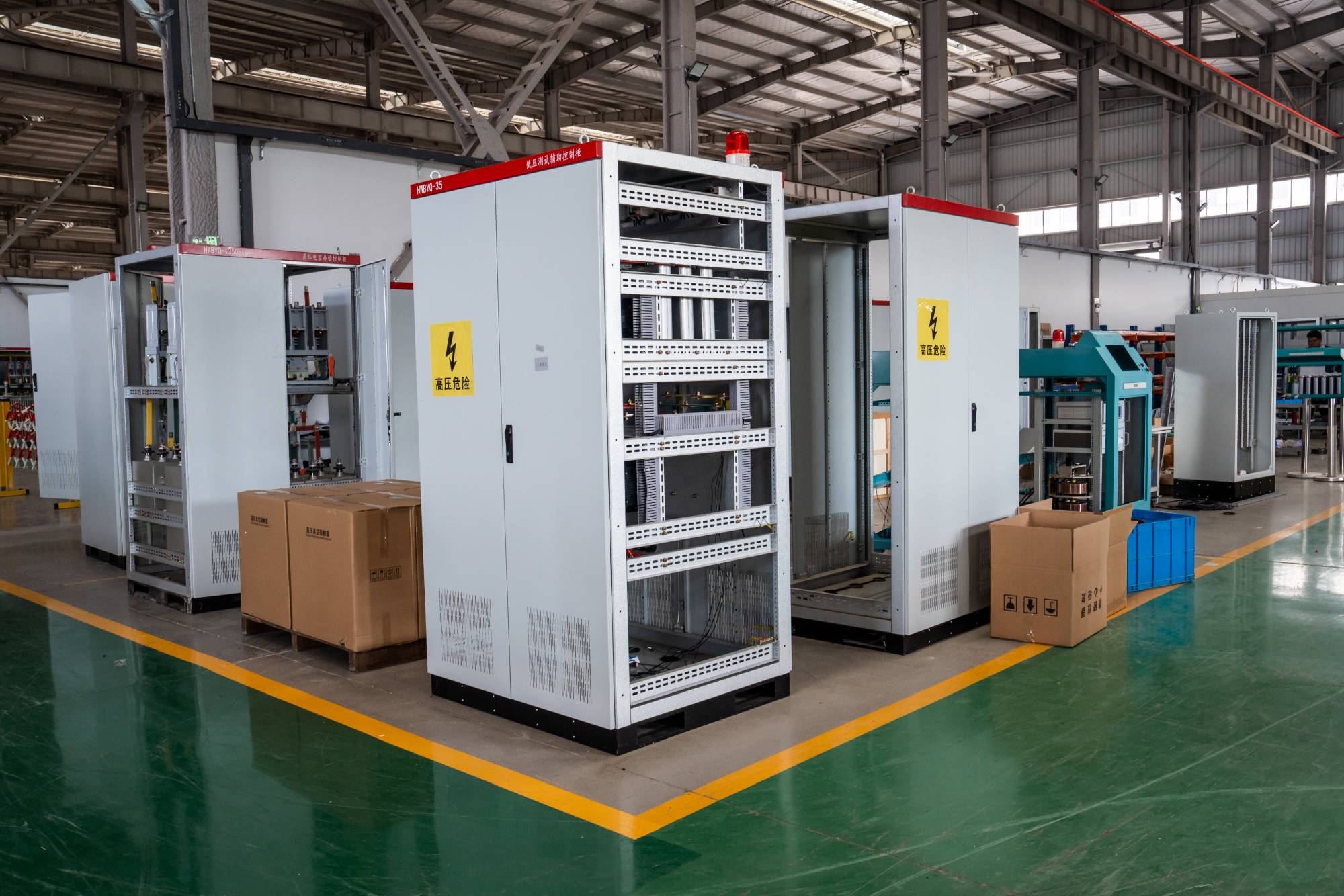

1. High and low voltage switchgear factory: Batch testing of temperature rise of finished circuit breakers and bus ducts before leaving the factory;
2. Copper bar processing enterprises: high current busbar current carrying and heating performance testing;
3. Third party testing of power equipment: Temperature rise items for switchgear and isolating switch type tests;
Precautions
1. When opening the box, the electrical components and contact points should be checked for any transportation damage or poor contact.
2. Before use, check whether the contact of each electrical appliance is good, especially the contact of the voltage regulator carbon brush must be good.
3. Strictly follow the relevant operating procedures and strictly prohibit unauthorized use or use without the supervision of a safety officer.
4. The equipment should be stored in a well ventilated, dry, and non corrosive gas environment.
Frequently Asked Questions
1. What is a fully automatic temperature rise test device?
The fully automatic temperature rise test device is an intelligent testing system specifically designed for temperature rise testing of power equipment. It can achieve high current output, automatic temperature acquisition, real-time data monitoring, automatic control, and test report generation. It is widely used in various power equipment factory tests and type tests.
2. Does it support long-term continuous operation?
Support. The equipment adopts high-quality high-power power supply and efficient heat dissipation design, which can meet the requirements of long-term continuous temperature rise testing, with stable output, suitable for product type testing and continuous aging testing.
3. What is the maximum output current of the device?
We can provide different specifications of equipment according to customer needs, and the output current can be customized to 500A, 1000A, 3000A, 5000A, 10000A or even higher, to meet the temperature rise test requirements of different products.
4. How many temperature points can be measured simultaneously?
Different numbers of temperature measurement channels can be configured according to customer needs, such as 8, 16, 32, 64 or more, suitable for multi-point temperature rise monitoring of complex products.
5. How to ensure stable output current?
The equipment adopts high-precision constant current control technology, combined with an automatic feedback regulation system, which can maintain stable current throughout the entire testing process, ensuring accurate and reliable test results.
Why choose Wuhan UHV Power Technology Co., Ltd?
In the question of "how to choose", brand reputation is often the most direct reference. Wuhan Ultra High Voltage Power Company, as a leading enterprise in domestic high-voltage power testing equipment, has developed a temperature rise test device that has been widely used in State Grid, Southern Power Grid, and major electrical equipment manufacturers. We not only provide equipment, but also offer a complete set of testing solutions. From scheme design to on-site debugging, from personnel training to after-sales maintenance, Wuhan UHV takes every device seriously to ensure that users can buy and use it with peace of mind.
